Gammex RMI 100A100校准模体,RMI 100A100校准模体,GAMMEX RMI CT-SIM校验模体

Gammex RMI 100A100校准模体，精确刻度校准模体：直观，全面对激光灯进行日常QA/QC
Gammex RMI 100A100校准模体用于固定和可移动对准产品的校准对准。它用于这些产品的设置和持续质量保证计划。
一旦设置了模体，就可以测试外部激光器，CT单元激光器和台面移动的对准精度。
Gammex RMI 100A100校准模体功能：
用于执行水平，垂直和矢状激光对准的多个凹入对准标记
对准可移动和固定的激光器或对准产品
包括对准孔，内置的气泡水平和可调脚，用于在台上调平单元


GAMMEX RMI CT-SIM校验模体结合Gammex CT-Sim 激光系统，用于激光的设立及产品质量检测。A100/PH-2134特点是在水平、垂直及多倍的凹槽对准及矢状面激光对准。

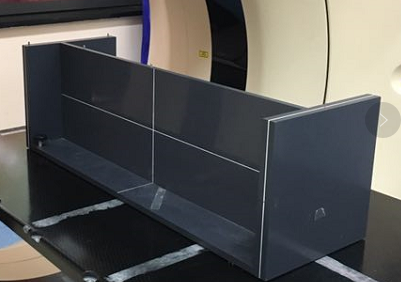

GAMMEX RMI 100A100模体是一个60厘米长，成20厘米宽，成20厘米厚的，带刻度的模体，平时用来校准激光线的走位是否准直.

美国Gammex模体100A100可用于移动及固定激光线的CT 设备的对准。100A100的设计可适用于洞孔、气泡水平及设备水平的调整。Gammex的CT-Sim校验模体的安装快速、简单。一旦模体安装完毕，不但外部的Gammex激光的精度可以测试到，而且CT设备的激光的准确性及台面的移动可以确定下来。


A1000/HP-2134 Gammex RMI校准模体参数
规格：58.4*20*20 cm
重量：5.3kg
材料：PVC







The Gammex RMI CT-Sim Calibration Phantom 100A100 is used in conjunction with the Gammex CT-Sim laser system in the set-up and continuing QA of the lasers. The 100A100 features multiple re c e s s e d alignment marks for perf o rming horizontal, vertical and sagittal laser alignment. It can be used for aligning both movable and fixed lasers in a CT suite. The 100A100 is designed with alignment holes, a built-in bubble level and adjustable feet for leveling the unit on any table. These f e a t u res make The CT-Sim Calibration Phantom quick and easy to set up. Set-up is achieved using the CT scanner for absolute positioning accuracy. once the phantom is set up, not only can the external Gammex lasers be tested for accuracy, but the CT unit laser accuracy and table movement can be determ i n e d .
