Pro-RT IsoBeam等中心校准仪，Pro-RT IsoBeam准直仪
型号：Pro-RT IsoBeam 类别： 科研模型 品牌：波兰Pro-Project pdf资料: Pro-RT IsoBeam等中心校准仪，Pro-RT IsoBeam准直仪.pdf
采购热线：0755-28917660 15813841944
在线咨询产品

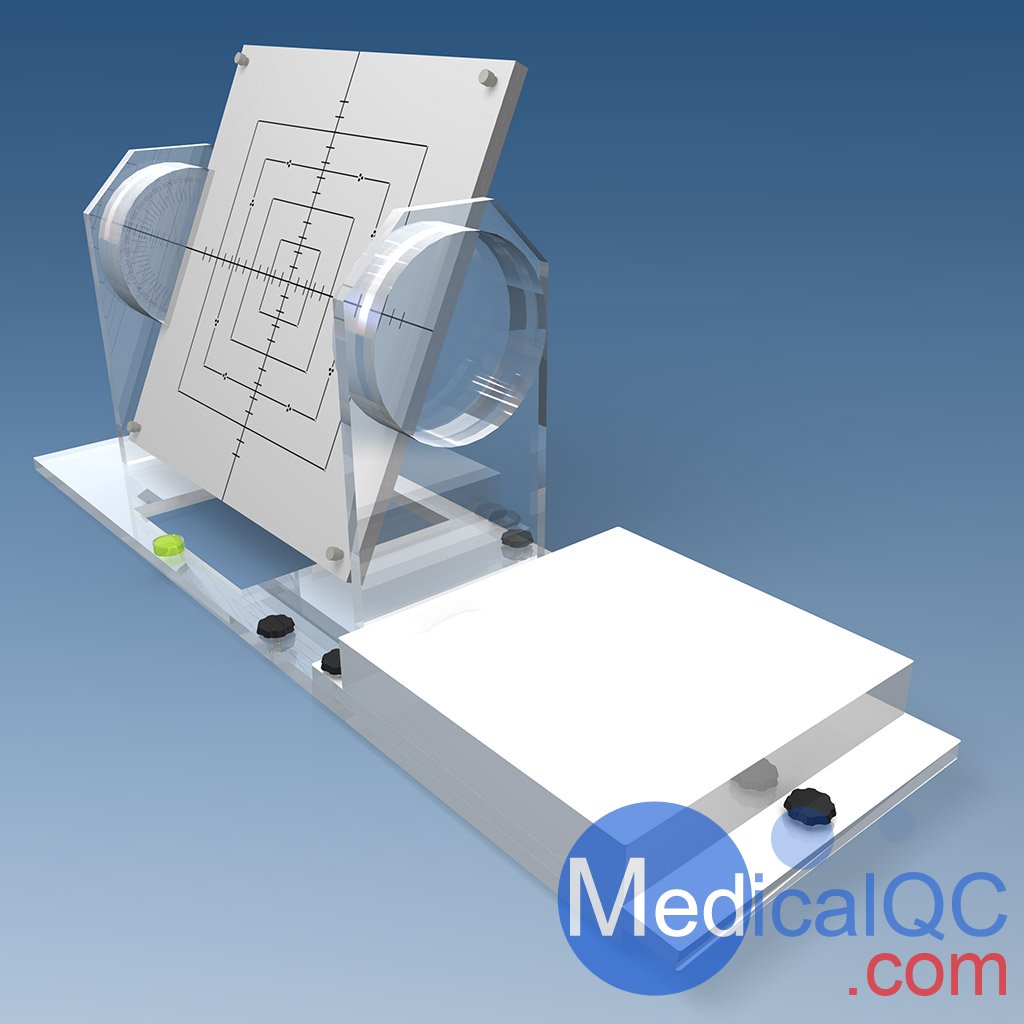

Pro-RT IsoBeam等中心校准仪，Pro-RT IsoBeam准直仪
Pro-RT IsoBeam是一款多功能，高精度的质量保证工具，用于每天，每周或每月质量评估直线加速器或远距治疗设备的所有机械和几何处理参数。
Pro-RT IsoBeam等中心校准仪，Pro-RT IsoBeam准直仪可以方便，准确地检查准直仪的等中心度，台架等中心度，台面等中心度，准直仪的场尺寸精度，辐射/光场的一致性，等角点的旋转稳定度，ODI精度和激光对准。
Pro-RT IsoBeam等中心校准仪，Pro-RT IsoBeam准直仪技术数据：
外形尺寸：203 x 457 x 330 mm
屏幕
305 x 305mm
2个不透明的PMMA板
空间为25x30cm电影
刻有精确定义屏幕角落，边缘和中心的线条
现场尺寸：2x2mm，50x50mm，100x100mm，150x150mm和200x200mm
中心线用10mm的短线划线
直径2毫米的钨标记在场地的中心和角落
可以以45°的增量旋转360°
底座带有三个调平防滑螺钉和气泡水平
可选的表外测量
符合国际原子能机构“技术报告”（第398号），“国际原子能机构技术报告”（第430号系列）和“国际原子能机构技术通报”第1540号“放射治疗计划系统的规格和验收测试”
CE认证
手册提供了执行每个测试，结果评估和注册的详细指南
Pro-RT IsoBeam等中心校准仪，Pro-RT IsoBeam准直仪产品特点：
符合：
- 国际原子能机构技术报告（第398号系列）
- 国际原子能机构技术报告（第430号系列）- 国际原子能机构“技术文件”第
1540号，放射治疗计划系统的规格和验收测试
CE认证
该手册提供了详细的指导方针，以进行每项测试，结果评估和注册
The Pro-RT IsoBeam is a multifunctional, precision quality assurance tool for daily, weekly or monthly quality assessments of all mechanical and geometrical treatment parameters of linear accelerators or teletherapy units.
It is designed to easily and accurately check collimator isocentricity, gantry isocentricity, table isocentricity, collimator field size accuracy, radiation/light field congruence, isocenter rotational stability, ODI accuracy and laser light alignments.
Technical data (can be modified to customer specifications):
Overall dimensions: 203 x 457 x 330 mm
Screen
305 x 305mm
2 opaque PMMA plates
Space for 25x30cm film
Inscribed with lines precisely defining corners, edges, and centers of screen
Field sizes: 2x2mm, 50x50mm, 100x100mm, 150x150mm and 200x200mm
Center lines scribed with short lines 10mm apart
Tungsten markers 2mm in diameter in the center and corners of the field
Can rotate 360° in 45° increments
Base with three leveling non-slip screws and bubble level
Optional off-the-table measurement
Complies with IAEA Technical Reports (Series No. 398), IAEA Technical Reports (Series No. 430), and IAEA-TECDOC-1540, Specification and Acceptance Testing of Radiotherapy Treatment Planning Systems
CE certified
Manual provides detailed guidelines for carrying out each test, results assessment and registration
Pro-RT IsoBeam是一款多功能，高精度的质量保证工具，用于每天，每周或每月质量评估直线加速器或远距治疗设备的所有机械和几何处理参数。
Pro-RT IsoBeam等中心校准仪，Pro-RT IsoBeam准直仪可以方便，准确地检查准直仪的等中心度，台架等中心度，台面等中心度，准直仪的场尺寸精度，辐射/光场的一致性，等角点的旋转稳定度，ODI精度和激光对准。
Pro-RT IsoBeam等中心校准仪，Pro-RT IsoBeam准直仪技术数据：
外形尺寸：203 x 457 x 330 mm
屏幕
305 x 305mm
2个不透明的PMMA板
空间为25x30cm电影
刻有精确定义屏幕角落，边缘和中心的线条
现场尺寸：2x2mm，50x50mm，100x100mm，150x150mm和200x200mm
中心线用10mm的短线划线
直径2毫米的钨标记在场地的中心和角落
可以以45°的增量旋转360°
底座带有三个调平防滑螺钉和气泡水平
可选的表外测量
符合国际原子能机构“技术报告”（第398号），“国际原子能机构技术报告”（第430号系列）和“国际原子能机构技术通报”第1540号“放射治疗计划系统的规格和验收测试”
CE认证
手册提供了执行每个测试，结果评估和注册的详细指南
Pro-RT IsoBeam等中心校准仪，Pro-RT IsoBeam准直仪产品特点：
符合：
- 国际原子能机构技术报告（第398号系列）
- 国际原子能机构技术报告（第430号系列）- 国际原子能机构“技术文件”第
1540号，放射治疗计划系统的规格和验收测试
CE认证
该手册提供了详细的指导方针，以进行每项测试，结果评估和注册
The Pro-RT IsoBeam is a multifunctional, precision quality assurance tool for daily, weekly or monthly quality assessments of all mechanical and geometrical treatment parameters of linear accelerators or teletherapy units.
It is designed to easily and accurately check collimator isocentricity, gantry isocentricity, table isocentricity, collimator field size accuracy, radiation/light field congruence, isocenter rotational stability, ODI accuracy and laser light alignments.
Technical data (can be modified to customer specifications):
Overall dimensions: 203 x 457 x 330 mm
Screen
305 x 305mm
2 opaque PMMA plates
Space for 25x30cm film
Inscribed with lines precisely defining corners, edges, and centers of screen
Field sizes: 2x2mm, 50x50mm, 100x100mm, 150x150mm and 200x200mm
Center lines scribed with short lines 10mm apart
Tungsten markers 2mm in diameter in the center and corners of the field
Can rotate 360° in 45° increments
Base with three leveling non-slip screws and bubble level
Optional off-the-table measurement
Complies with IAEA Technical Reports (Series No. 398), IAEA Technical Reports (Series No. 430), and IAEA-TECDOC-1540, Specification and Acceptance Testing of Radiotherapy Treatment Planning Systems
CE certified
Manual provides detailed guidelines for carrying out each test, results assessment and registration
