Ohmic UPM-DT-100SP超声功率计，200mW分辨率
型号：UPM-DT-100SP 类别： 质控仪器 品牌：美国Ohmic pdf资料: Ohmic UPM-DT-100SP超声功率计，200mW分辨率.pdf
采购热线：0755-28917660 15813841944
在线咨询产品

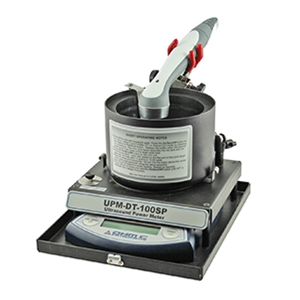

美国Ohmic UPM-DT-100SP超声功率计，200mW分辨率
根据AIUM，JCAHO，FDA和NIST指南，UPM-DT-100SP型超声功率计开发用于测试治疗传感器。自1977年以来，OHMIC的超声波功率表已被广泛应用于世界各地，是医疗传感器功率输出记录最为广泛的标准。UPM-DT系列产品的性能经过了美国食品和药物管理局（FDA）和美国国家标准与技术研究院（NIST）制定的容限的测试和验证。紧凑轻便的UPM-DT-100SP超声功率计可满足便携式测试仪器的所有要求，具有UPM-DT系列的可靠性和经过验证的性能。UPM-DT-100SP超声功率计使用与高分辨率UPM-DT-1和UPM-DT-10相同的测试箱和目标配置。
UPM-DT-100SP超声功率计的特点：
•性能经FDA和NIST测试
•五点认证（NIST可溯源）
•分辨率：200 mW（150 mW，克模式）
•测量范围： 0-30瓦
•频率范围： .5 -10 mhz
•测量总脉冲或连续功率
•自动归零和稳定
•可选读数单位为瓦或克
•电池或线路供电
•数字显示和RS-232接口
UPM-DT-100SP超声功率计电源信息
BC20-21113
除UPM-DT-50SP Rev B和UPM-100SP Rev B以外的所有芬欧汇川电源（通用），用于欧洲，英国，澳大利亚，美国
BC20-21119
UPM-DT-50SP Rev B和UPM-100SP Rev B的电源（通用），带欧洲，英国，澳大利亚，美国的插头
UPM-DT-100SP超声功率计标配包括以下附件：
金属外壳 - 黑色
通用电源
1克校准重量
NIST可溯源校准证书
用户手册
The most reliable and repeatable means of measuring ultrasound power is by the radiation force method. The transducer to be tested is centered above a 45° air-backed cone target in de-gassed water. The coupling is made to a precision balance capable of resolving ± 0.15 watts. When acoustic energy is applied to the cone, the resultant force is directly proportional to the total radiated power. The test tank is lined with sonic absorbent rubber to prevent acoustic reflection. The balance is programmed to convert milligram magnitude forces direct to a readout in watts with good resolution. Measurement accuracy of the power meter can be verified by placing a calibrated weight on the cone’s support arm.
Features for the USP50SP:
• Resolution: 50mW (150 mW in grams mode)
• Measurement range: 0 to 30 Watts
• Frequency range: .5 to 10mHZ
• Measures pulsed or continuous power
• Selectable readout in watts or grams
• Battery or line-powered
• Digital liquid crystal display
• Optional RS-232 or USB interface
• Automatic zeroing & stabilization
• Five point certification (NIST traceable)
Power Supply Information
BC20-21113
Power supply (Universal) for all UPM's except UPM-DT-50SP Rev B and UPM-100SP Rev B w/plugs for EUR, UK, AUS, USA
BC20-21119
Power supply (Universal) for UPM-DT-50SP Rev B and UPM-100SP Rev B w/plugs for EUR, UK, AUS, USA
根据AIUM，JCAHO，FDA和NIST指南，UPM-DT-100SP型超声功率计开发用于测试治疗传感器。自1977年以来，OHMIC的超声波功率表已被广泛应用于世界各地，是医疗传感器功率输出记录最为广泛的标准。UPM-DT系列产品的性能经过了美国食品和药物管理局（FDA）和美国国家标准与技术研究院（NIST）制定的容限的测试和验证。紧凑轻便的UPM-DT-100SP超声功率计可满足便携式测试仪器的所有要求，具有UPM-DT系列的可靠性和经过验证的性能。UPM-DT-100SP超声功率计使用与高分辨率UPM-DT-1和UPM-DT-10相同的测试箱和目标配置。
UPM-DT-100SP超声功率计的特点：
•性能经FDA和NIST测试
•五点认证（NIST可溯源）
•分辨率：200 mW（150 mW，克模式）
•测量范围： 0-30瓦
•频率范围： .5 -10 mhz
•测量总脉冲或连续功率
•自动归零和稳定
•可选读数单位为瓦或克
•电池或线路供电
•数字显示和RS-232接口
UPM-DT-100SP超声功率计电源信息
BC20-21113
除UPM-DT-50SP Rev B和UPM-100SP Rev B以外的所有芬欧汇川电源（通用），用于欧洲，英国，澳大利亚，美国
BC20-21119
UPM-DT-50SP Rev B和UPM-100SP Rev B的电源（通用），带欧洲，英国，澳大利亚，美国的插头
UPM-DT-100SP超声功率计标配包括以下附件：
金属外壳 - 黑色
通用电源
1克校准重量
NIST可溯源校准证书
用户手册
The most reliable and repeatable means of measuring ultrasound power is by the radiation force method. The transducer to be tested is centered above a 45° air-backed cone target in de-gassed water. The coupling is made to a precision balance capable of resolving ± 0.15 watts. When acoustic energy is applied to the cone, the resultant force is directly proportional to the total radiated power. The test tank is lined with sonic absorbent rubber to prevent acoustic reflection. The balance is programmed to convert milligram magnitude forces direct to a readout in watts with good resolution. Measurement accuracy of the power meter can be verified by placing a calibrated weight on the cone’s support arm.
Features for the USP50SP:
• Resolution: 50mW (150 mW in grams mode)
• Measurement range: 0 to 30 Watts
• Frequency range: .5 to 10mHZ
• Measures pulsed or continuous power
• Selectable readout in watts or grams
• Battery or line-powered
• Digital liquid crystal display
• Optional RS-232 or USB interface
• Automatic zeroing & stabilization
• Five point certification (NIST traceable)
Power Supply Information
BC20-21113
Power supply (Universal) for all UPM's except UPM-DT-50SP Rev B and UPM-100SP Rev B w/plugs for EUR, UK, AUS, USA
BC20-21119
Power supply (Universal) for UPM-DT-50SP Rev B and UPM-100SP Rev B w/plugs for EUR, UK, AUS, USA
